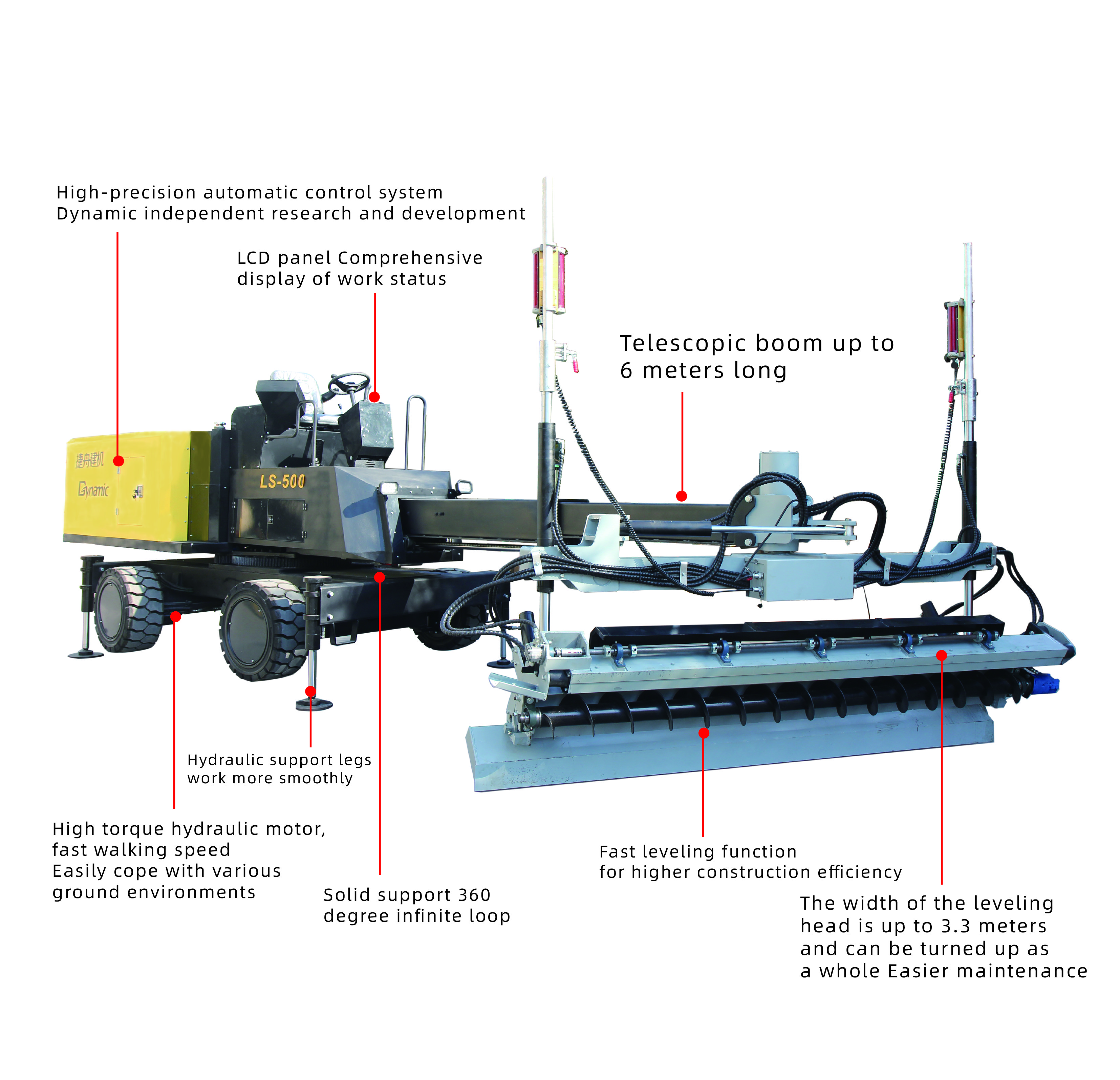

LS-500 Laser Levelling Machine
Short Description:
Dynamic laser screed series could greatly improve the concrete smoothness and compaction ,as well as prolong the service life of concrete floor widely used in modern industrial workshop, large shopping malls ,warehouse and other construction of large area concrete ground preferred.
Crab – type steering mode realizes 360 – degree machine rotation.
1. Automatic head slow down function and quick leveling function.
2. Dynamic brand/Topcon laser system, with high working precision and reliability.
3. Improve the quality of the terrace and increase profits
4. Use high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control.
5. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
6. The forward-seated operation can widen operator vision, reduce the labor intensity and improve working efficiency.
7. Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller which are located on the one side of the seat, is user-friendly.
8. LCD panel Comprehensive display of work status
9. Telescopic boom up to 6 meters long
10. The width of the leveling head is up to 3.3 meters and can be turned up as a whole Easier maintenance
11.Solid support 360 degree infinite loop
| Condition |
New |
| Warranty | 1.5 years |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction works |
| Weight | 35000 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 2 years |
| Core Components | Engine, Gear |
| Place of Origin | Shanghai, China |
| Unique Selling Point | Large volume pump system |
| Weight | 3.5 T |
| Walking speed | 9 km/h |
| Vibration frequency | 60 rpm |
| Auger speed | 200 rpm |
| fuel tank volume | 70 L |
| Arm extended lengh | 6000 mm |
| Wiper length | 3300 mm |
| Engine power | 20 kw |
| Application | Construction Project |
Paving thickness
|
30-400 mm |
Exciting force
|
3000 n |
| Engine | Yáng ma 3TNV98 |
| Power | 20 Kw |
| Laser system control mode | Laser scanning + high precision servo push rod |
| Laser system control mode | plane, slope |
| Lead Time | ||||
| Quantity(pieces) | 1 - 1 | 2 - 3 | 4 - 10 | >10 |
| Est. time (days) | 3 | 15 | 30 | To be negotiated |
