LS-400 Four-wheel driving Laser Screened with auger

Short Description:

Dynamic Laser Screed series could gractly improvev the concrete smoothness and compaction, as well as prolong the service life of concrete floor.
Widely used in modern industrial workshop, large shopping malls, warehouse and other construction of large area concrete ground

1. High construction quality: The ground constructed by the  Laser Screed  machine average flatness can reach 2mm.

2. Fast construction speed: On average, 3000 square meters of ground pouring can be completed every day.

3. Reduce the amount of formwork support: the formwork consumption is only 38% of the traditional operation method.
4. High degree of automation and low labor intensity: reduce operators by 30% and reduce labor intensity at the same time.
5. High economic benefit: 30% lower cost per square meter than traditional process.

企业微信截图_17011363281535


Product Detail

Product Tags

Product Video

Specification

Product Name

LASER SCREED

Model LS-400
Weight 865 (kg)
Dimension L3380xW3350xH2400(mm)
Working Speed 0-18 (km/h)
Walking drive High torgue hydraulic motor four-wheel drive
Flattening head width   3000 (mm)
Paving thickness 30-350 (mm)
Exciting force  1000 (N)
Engine  2V78F-3
Power  17.6/24(kW/hp)
Laser system  Dynamic digital dual slope rmote control transmitter
Laser system control mode   Laser scanning + high precision servo push rod
Laser system control effect  plane、slope

the machines may be upgraded without further notice, shuject to the actual machines.

Detailed Images

LS-400 jieshouqi
LS-400 caozuomianban
322A0580
LS-400 datuigan
322A0581
322A0577
LS-400 zhenpingtou
322A0571

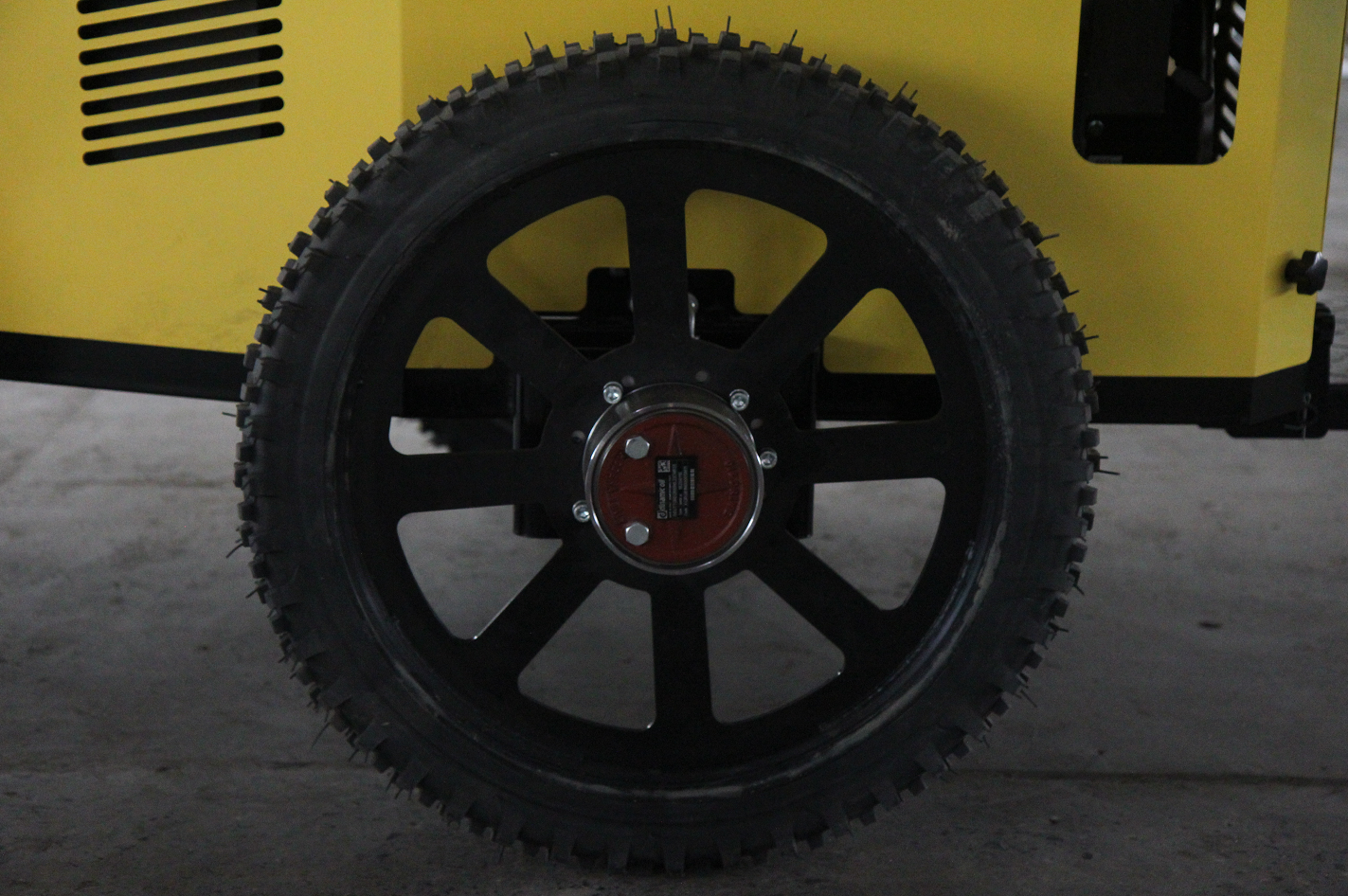

LS-400 xinzhoulun
322A0574

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.

2. The transportation packing of plywood case.

3. All of the production are inspected carefully one by one by QC before delivery.



1. High construction quality: The ground constructed by the  Laser Screed  machine average flatness can reach 2mm.

2. Fast construction speed: On average, 3000 square meters of ground pouring can be completed every day.

3. Reduce the amount of formwork support: the formwork consumption is only 38% of the traditional operation method. 4. High degree of automation and low labor intensity: reduce operators by 30% and reduce labor intensity at the same time. 5. High economic benefit: 30% lower cost per square meter than traditional process.

Lead Time
Quantity(pieces) 1 - 1 >1
Est.time (days) 20 To be negotiated
新网站 运输和公司

Company Information

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!

新网站 公司

FAQ

Q1: Are you manufacture or trade company?
A: Of course, we are manufacturer and we have our own factory. We can offer you best products and best services.

Q2: How about your delivery time?
A: Generally, it will take 3 days after payment arrived.

Q3: What is your terms of payment?
A: T/T, L/C, MasterCard, Western Union.

Q4: What is your packaging?
A: We package in Plywood case.

Q5: Do you machine can be custom-made?
A: Yes, we can design and produce according to client's requirements.
