QUM-80 High speed Concrete Ride-on Double disc Power Trowel

Short Description:

Ride-on power trowel can be used in surface finishing of concrete road, terrace, boatyard, airport and floor etc.

1. The speed is 150 revolutions per minute during construction, with high efficiency and good effect

2. Heavy load gearbox, high temperature oil leakage is not allowed

3. A variety of blade options, allowing better and faster construction

4. Honda twin cylinder gasoline engine, powerful and reliable

5. High efficiency transmission system to ensure effective output of engine


Product Detail

Product Tags

Product Video

Product Paramenters

Product Name

 350 (kg)
 L1980*W996*H1320 (mm)
         Working dimension
 L1910*W915 (mm)
Rotating Speed
 150 (rpm)
Power Four-stroke cold air gasoline engine
 Honda GX690
Max output
 17.9(24) kw(hp)
Fuel tank
 15.5 (L)

Detailed Images

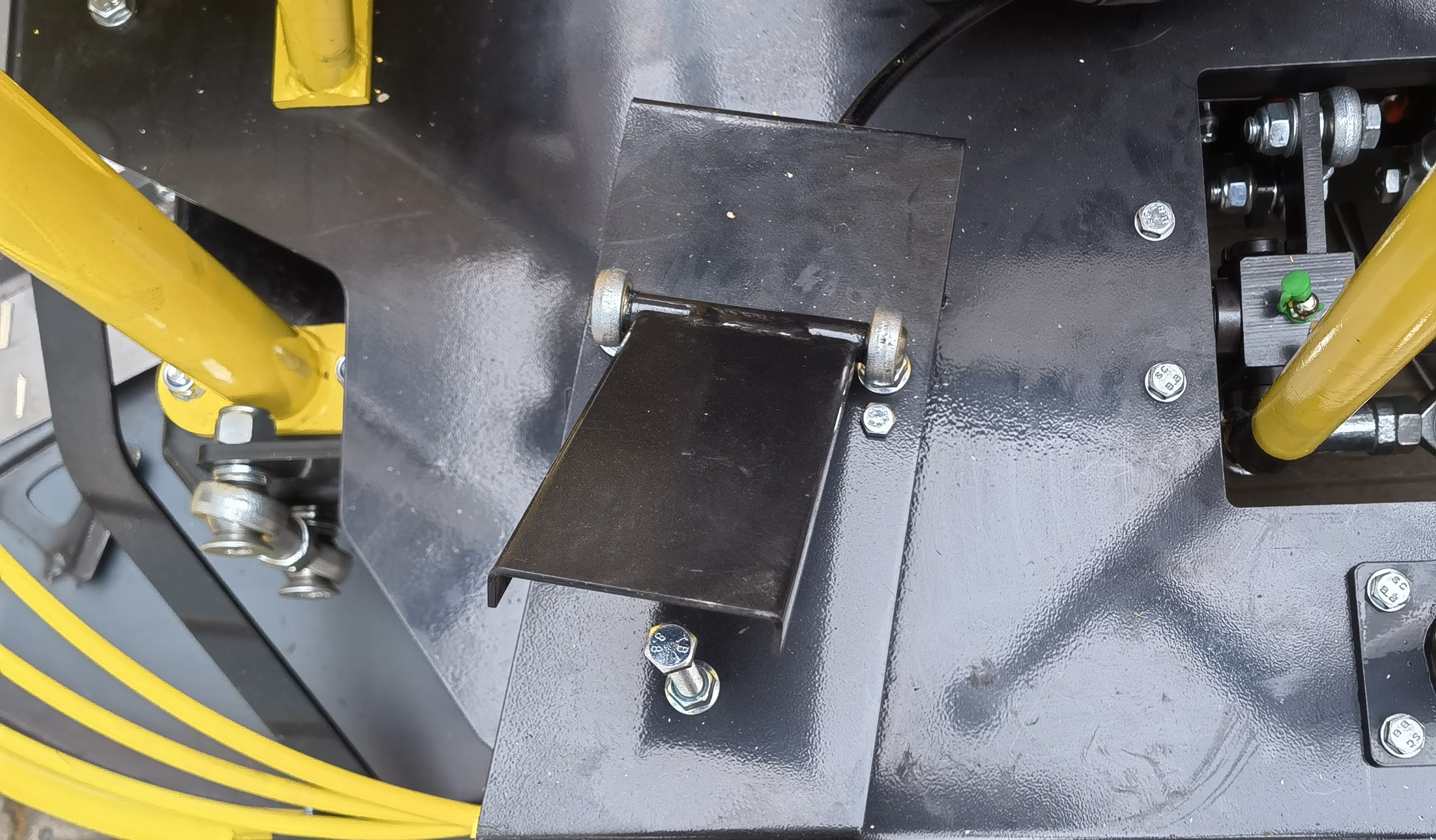

QUM-80 (3)
QUM-80 (5)
QUM-80 (1)
QUM-80 (7)
qum-80 wolunx


1. Variable clutch provides proper torque and speed range to match concrete conditions.

2. Ride-on operation reduces intensity of labor and increase efficiency of work.

3. With dual rotor, heavier weight and much better compaction, the efficiency is higher than walk-behind power trowel.

4. Safety switch can shut off engine at once to ensure security of operator.

5. Low barycenter design provides stable operation.

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces) 1 - 1 2 - 3 >3
Est.time (days) 7 15 To be negotiated
新网站 运输和公司

Our Team

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
