QUM-78 Two 1m/36 inch working faces Ride-on Power Trowel

Short Description:

DYNAMIC Ride-on trowel series Reliable power brand is adopted, with high horsepower and simple maintenance.
The heavy-duty turbine box and its own fan provide better heat dissipation and completely eliminate the potential oil leakage.
The high-precision chassis system makes the operation more stable and easy to operate.

企业微信截图_17011610846420

Product Detail

Product Tags

Product Video

Product Paramenters

Product Name
RIDE-ON POWER TROWEL
Model
QUM-78
Weight
358 (kg)
Dimension
L1980*W1020*H1500 (mm)
Working dimension
L1910*W915  (mm)
Rotating Speed
160 (rpm)
Engine
Air-cooled,4-cycle,Gasoline
Type
Honda GX690
Max output
17.9/(24) kw/(hp)
Fuel tank
15 (L)

the machines may be upgraded without further notice,subject to the actual machines.

Detailed Images

QUM-78 (4)
QUM-78 (3)
QUM-78 (3)
QUM-78 (1)
QUM-78 (2)
QUM-78 (4)
IMG_2852

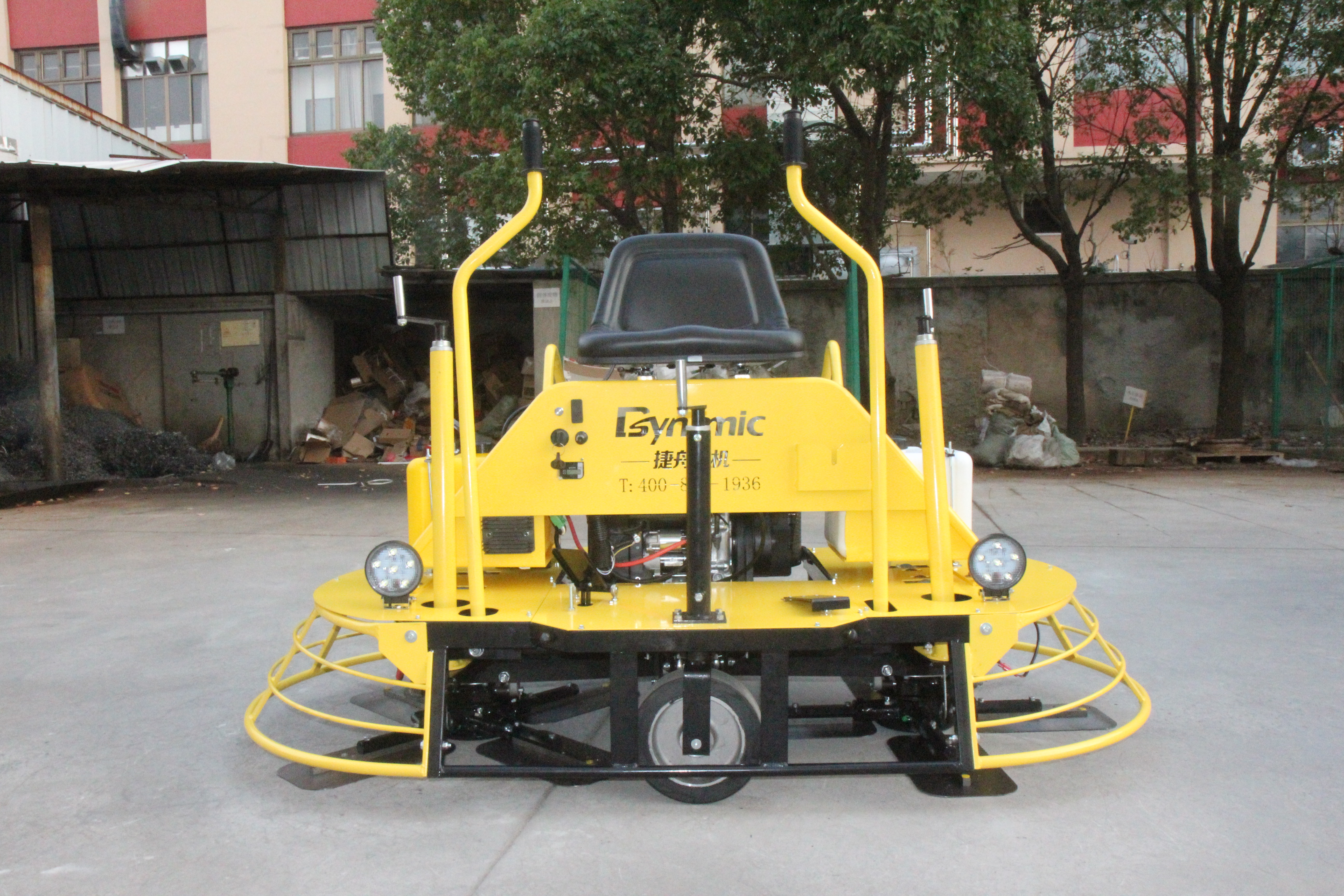

IMG_2812

Features

1. Ride-on operation reduces intensity of labor and increase efficiency of work.

2. With dual rotor, heavier weight and much better compaction, the efficiency is higher than walk-behind power trowel.

3. Safety switch can shut off engine at once to ensure security of operator.

4. Non-overlapping designed for two pans working.

5. Mechanism type steering system with rapid response and easy control.

6. A strong power supplied by Honda gasoline engine(electric start).

7.LED lighting illuminate a wide range not afraid of night construction

Packaging & Shipping

Lead Time
Quantity(pieces) 1 - 2 3 - 8 >3
Est.time (days) 10 15 To be negotiated
新网站 运输和公司

After Sales Service

* 3 days delivery match your requirement.

* 2 years warranty for trouble free.

* 7-24 hours service team standby.

VTS-600 (14)
VTS-600 (8)

Vision

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China.

DYNAMIC is a professional enterprise that combines R&D, production and sales in one.
We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.
With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.
You are welcomed to join us and gain achievement together!

Core Value: Assistance to customer's achievement Honesty & Integrity loyalty Devote to innovation Social responsibility.

Core Mission: Help in lifting construction standard, building better life.

Objectives: Pursue super excellence, to be the first-class supplier of construction machinery in the world.
