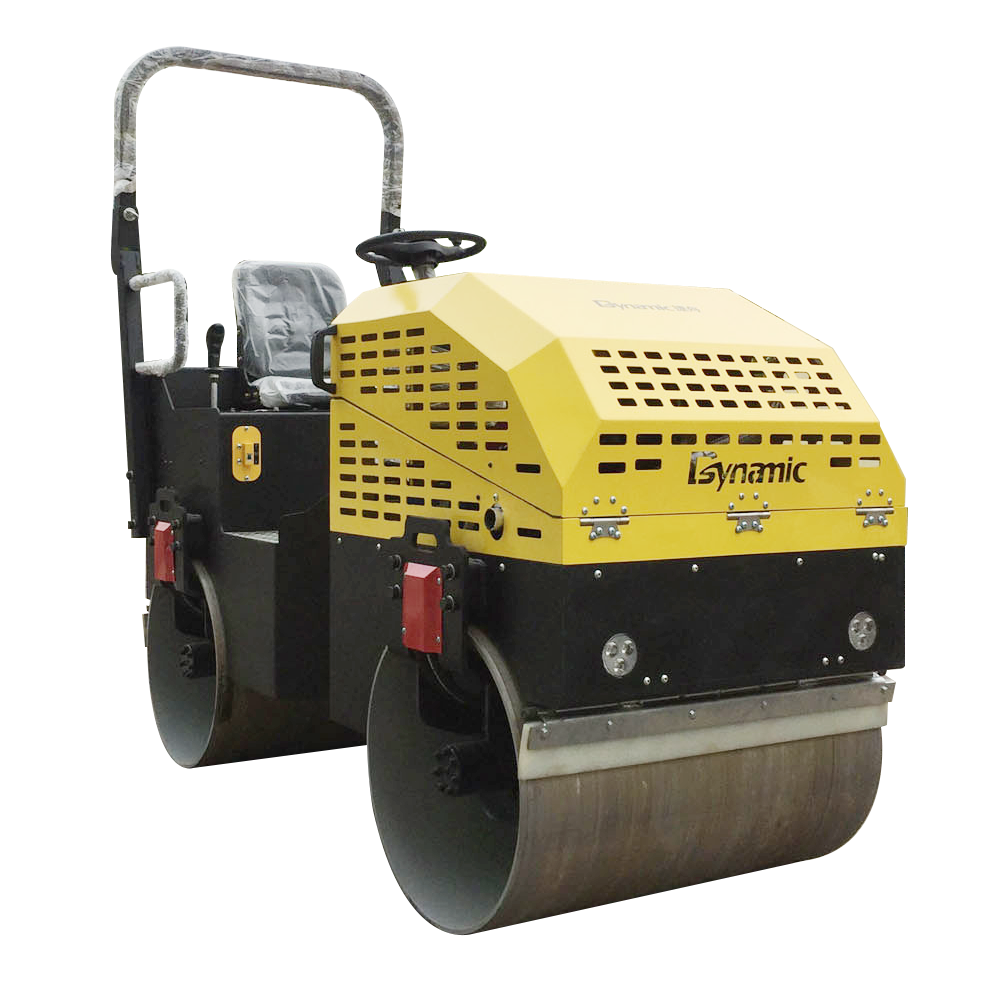

RRL-200 Dead weight 2 tons pressure capacity 30 kN Hydraulic Ride-on Roller

Short Description:

With a deadweight of 1-3 tons and a compaction capacity of 30 kN, it can effectively compact clay, asphalt and other working surfaces.

The hydraulic motor is driven by two wheels, with strong climbing ability, and can be used in various environments. The steering wheel controls the steering, which is easy and flexible to operate.
Honda GX-690V twin cylinder gasoline engine is equipped as standard, with strong power of 24 horsepower. Optional diesel engine


Product Detail

Product Tags

Product Video

Product Paramenters


Model  RRL-200
Weight  2000 (kg)
Dimension  L2300 x W1120 x H1700  (mm)
Drive Size  W1000xH610 (mm)
Centrifugal force   30 (kn)
Driving Speed  0-12 (km/h)
Maximum output power  17.9/24 (kw/hp)
Fuel tank capacity  36 (L)
Engine  Honda GX690
Drive Form  Hydraulic two-wheel drive
Power Four-stroke cold air gasoline engine


1.hydraulic power steering wheel flexible and convenient steer

2.honda power is powerful optional diesel power

3.danfoss hydraulic pump continuously variable speed and stable performance

4.hydraulic motot 2-wheel drive nofear of rough terrain

Detailed Images


Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces) 1 - 1 2 - 3 4 - 10 >10
Est. time (days) 3 15 30 To be negotiated
