DFS-500D Electronic ignition starting diesel engine road concrete cutter

Short Description:

Dynamic diesel engine concrete cutter series

1. Stable and reliable diesel engine with large torque, strong adaptability and simple maintenance

2. Electronic ignition startup is adopted, and the machine can be easily started at low temperature

3. Saw blade with maximum installation diameter of 500mm and cutting depth of 180mm

4. Perfect center of gravity design, fast, straight, efficient and stable cutting

企业微信截图_16697068695933


Product Detail

Product Tags

Video

Product Description



Model
DFS-500D
Weight 145(kg)
Dimension L1760xw550xH920 (mm)
Blade diameter 300-500 (mm)
Mounting aperture 25.4/50 (mm)
Cutting depth 180 (mm)
Power four-cycle cold air diesel engine
Type Cf186
Start method Electric start
Maximum output power 6.6/9.0 (kw/hp)
Diesel tank capacity 5.4 (L)

the machines may be upgraded without further notice,subject to the actual machines.

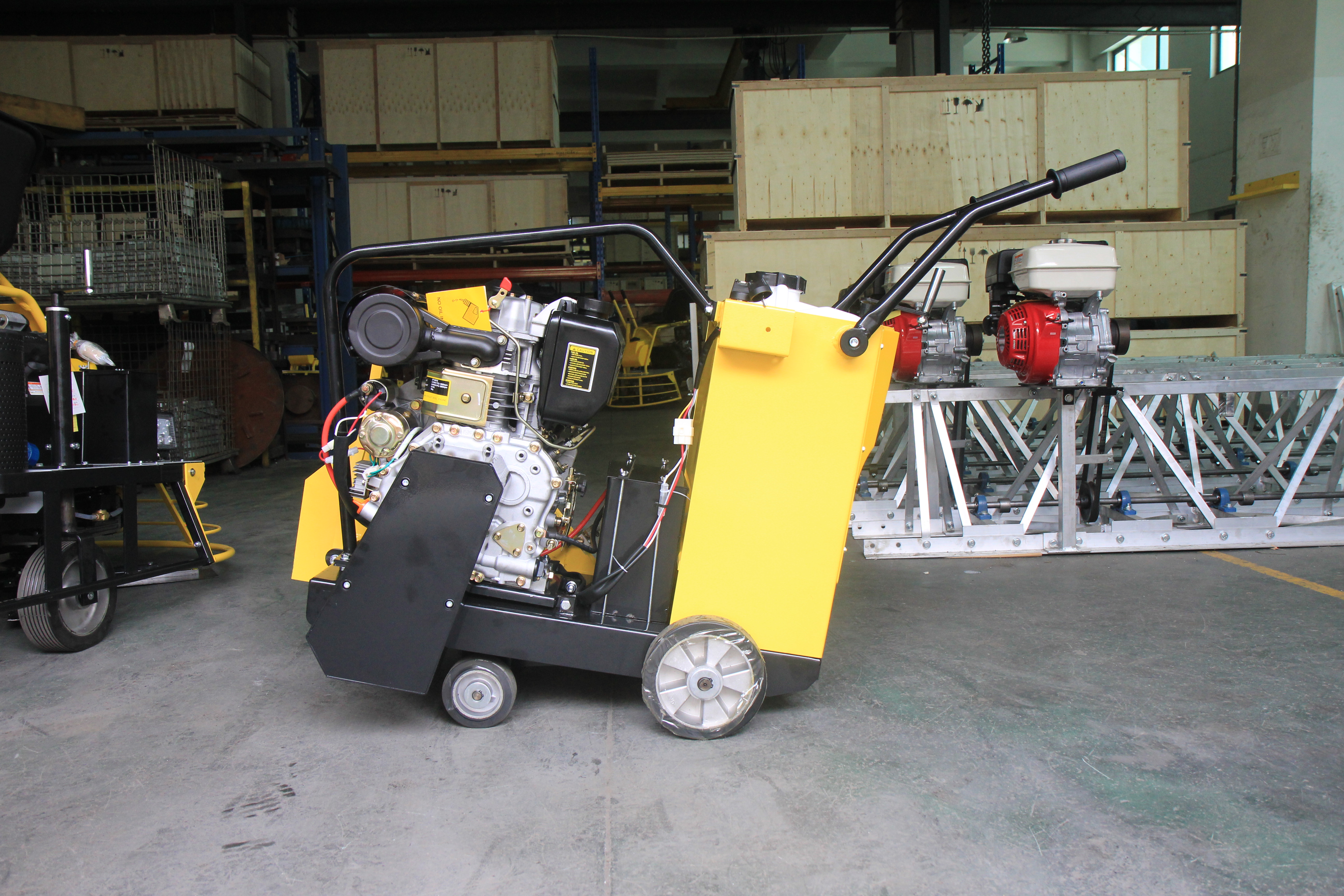

Detailed Images

322A0689
322A0695
DFS-500D (1)
DFS-500D (2)
DFS-500D (3)
DFS-500D (4)
322A0702
322A0703
DFS-500D (5)
DFS-500D (6)
DFS-500D (7)
DFS-500D (8)

Features

1. Foldable guide wheels intuitive cutting guide

2.Diesel  engines powerful

3.Flexible removable blade cover easier to replace saw blades

4.large capacity injection water tank for cutting saw blades optimal water flow

企业微信截图_17041777013941

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces) 1 - 1 2 - 3 >3
Est.time (days) 7 13 To be negotiated
新网站 运输和公司

Company Information

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
