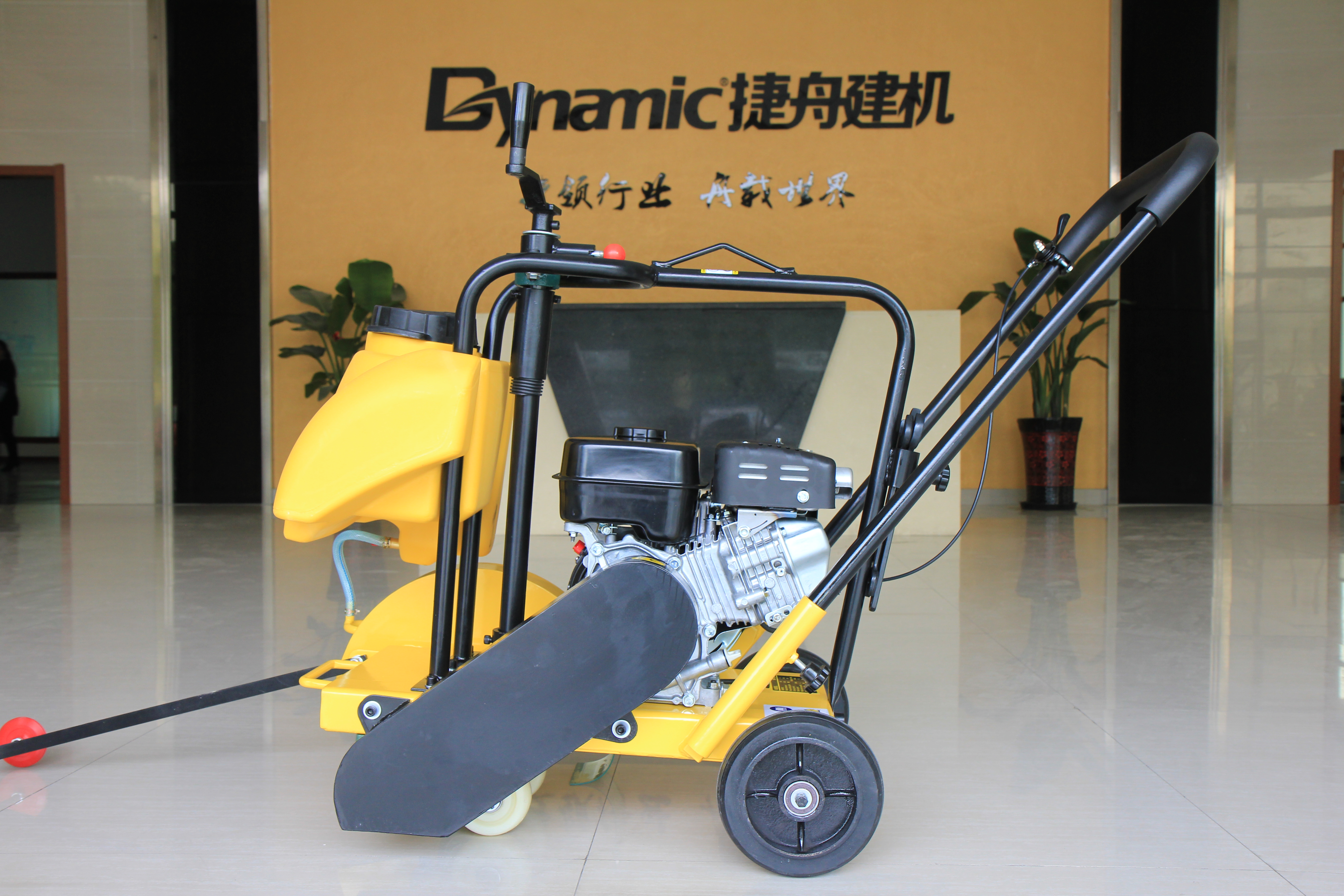

DFS-300 Walk Behind Gasoline Asphalt Road Floor Cutting Saw Concrete Cutter
Short Description:
Dynamic gasoline engine concrete cutter series
1. Ergonmics designed. Handle makes the operation more comfortable and speedy.
2. Special protective covering protects the engine perfectly and makes the transporatation more safely.
3. The unique designed water tank provides adequate water.
4. Special blade cover makes the assembling and disassembling more easily.
5. Folding guide wheel for accurate cutting.
6. Adjustable cutting depth assures the cutting working more precise and efficien.
| model | DFS-300 |
| Weight | 87 (kg) |
| Dimension | L1610xW470xH970 (mm) |
| Blade diameter | 300-350 (mm) |
| Mounting aperture | 25.4/50 (mm) |
| Cutting depth | 100 (mm) |
| Power | four-cycle cold air diesel engine |
| Type | honda GX160 |
| Maximum output power | 4.0/5.5 （kw/hp） |
| Diesel tank capacity | 3.6（L） |
the machines may be upgraded without further notice,subject to the actual machines.
1. Large capacity injection water tank for cutting saw blades optimal water flow
2.Solid road wheels easy to move
3.Flexible disassebly and assembly of blade cover it is more convenient to replace the saw blade
1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.
| Lead Time | |||
| Quantity(pieces) | 1 - 1 | 2 - 3 | >3 |
| Est.time (days) | 7 | 13 | To be negotiated |
