QUM-96 2.4 M/96 INCH WORKING DIAMETER Mechanical manipulation CONTROL RIDE-ON TROWER

Short Description:

Dynamic Ride-on Trowel series could greatly increase work efficiency for surface of concrete raised paste and trowel,smooth out Widely used in building large area ground like factory,warehousesquare and so on

◆Mechanical manipulation type steering system with rapid response and easy control

◆Ride-on operation reduces intensity of labor and increase efficiency of work

◆With dual rotor, much heavier weight and much better compaction, the efficiency is higher than walk-behind power trowel Anon-overlapping is designed for two pans working

◆Low barycenter design provides stable operation

◆A strong power supplied by Honda or Kohler gasoline engine

◆Left and right sides 5 blades design, much better compaction result

企业微信截图_16680636402402


Product Detail

Product Tags

Product Video

Product Paramenters

Product Name  RIDE-ON POWER TROWEL
Model QUM-96
Weight 462 Kg
Dimension L2540 x W1240 x H1510 mm
Working diameter l2440xw1140 mm
Roating Speed 165 rpm
Engine

Four-stroke cold air gasoline engine

Model Kohler
CH940
Maximum Output Power  25.4/34 (kw/hp)
Fuel Tank Capacity  40 (L)

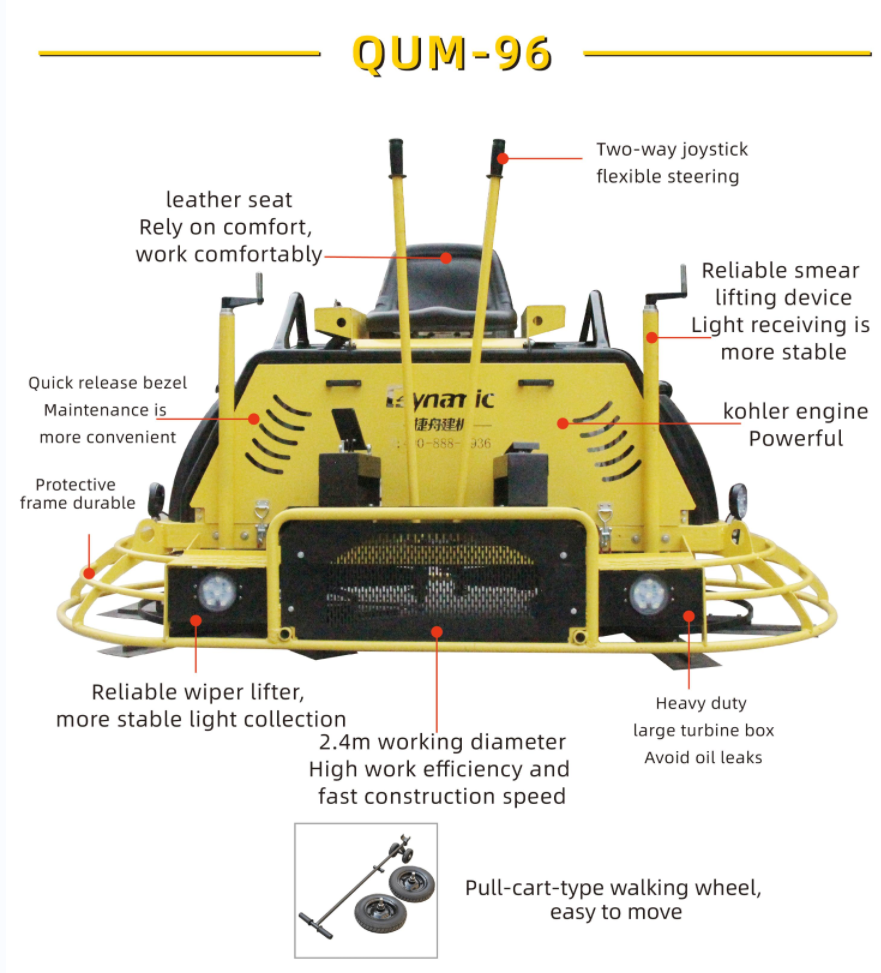

Features

1. 2.4m/96 inch orking diameter has high working efficiency and fast construction speed

2. The Mechanical manipulation handle is easy to operate, sensitive in steering and fast in response

3. Heavy turbine box, with cooling fan, to prevent high temperature oil leakage

4. Solid plastering system, smooth polishing

5. Reliable blade lifting device, stable and durable

6. Pulling type traveling wheel, convenient for moving and transferring

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces) 1 - 1 2 - 3 4 - 10 >10
Est. time (days) 3 15 30 To be negotiated
新网站 运输和公司

After Sales Service

* 3 days delivery match your requirement.

* 2 years warranty for trouble free.

* 7-24 hours service team standby.

VTS-600 (14)
VTS-600 (8)

Company Profile

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
