In the modern construction industry, the quality and flatness of concrete floors directly determine the service performance, durability and aesthetic effect of buildings. Traditional concrete leveling methods rely heavily on manual operation and simple mechanical tools, which are plagued by low precision, low efficiency, high labor dependence and frequent rework. With the upgrading of construction industrialization and the increasing demand for high-standard floor engineering, the Automatic Concrete Floor Leveling Laser Screed Machine has become a core intelligent construction equipment for large-area concrete floor paving. Integrating laser positioning technology, automatic control system and mechanical vibrating compaction structure, this machine completely subverts the traditional construction mode and realizes high-precision, high-efficiency and low-cost concrete leveling operations, which is widely used in industrial plants, warehouses, commercial plazas and large infrastructure projects.
The automatic laser screed machine is an intelligent self-propelled construction equipment specially designed for wet concrete leveling and compaction. Different from traditional manual screeding and ordinary mechanical leveling equipment, it takes laser signals as the unified elevation reference and realizes real-time automatic adjustment of the screed head height through the matching laser transmitting and receiving system. The whole construction process gets rid of the limitations of manual experience and horizontal control tools such as scaffolding and elevation lines, ensuring that the entire concrete floor maintains a consistent flatness and elevation accuracy. Equipped with an integrated structure of scraper, vibrating plate and leveling device, the machine integrates concrete spreading, vibrating defoaming, compaction and precise leveling into one process, greatly simplifying the concrete floor construction procedure.

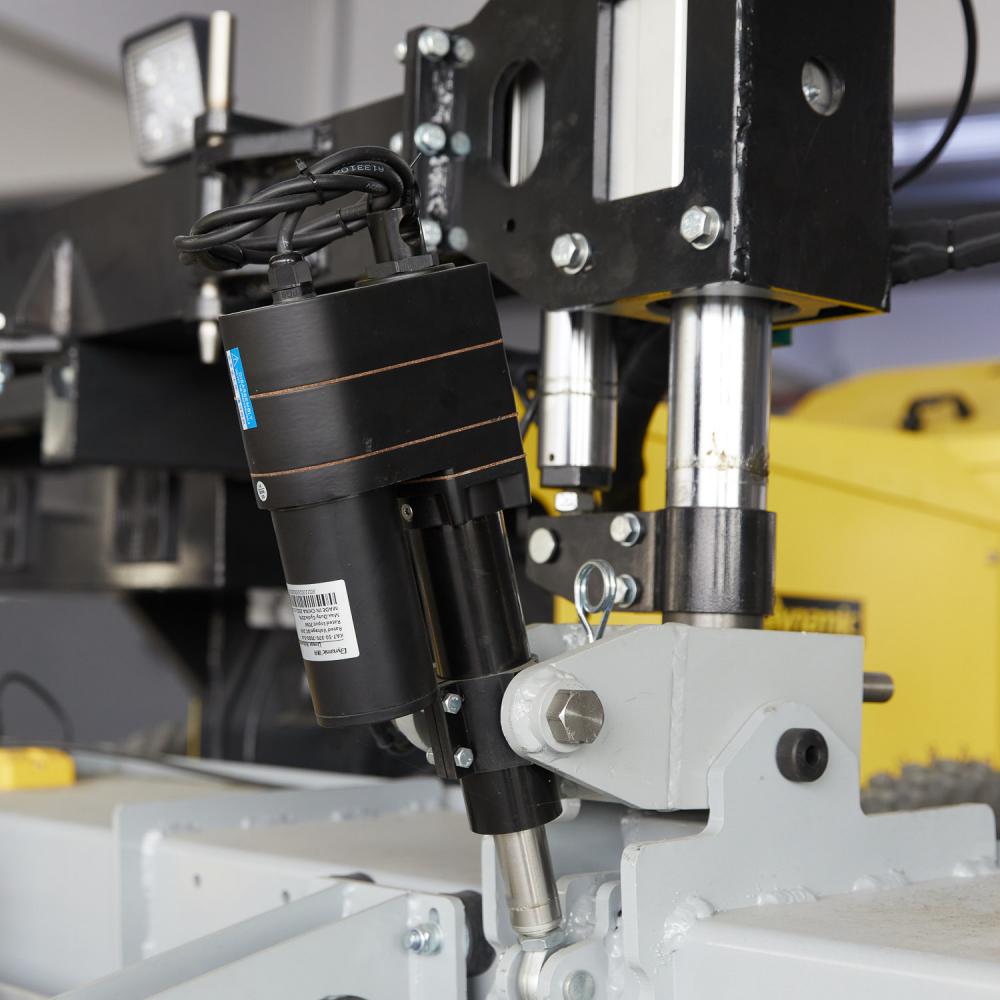

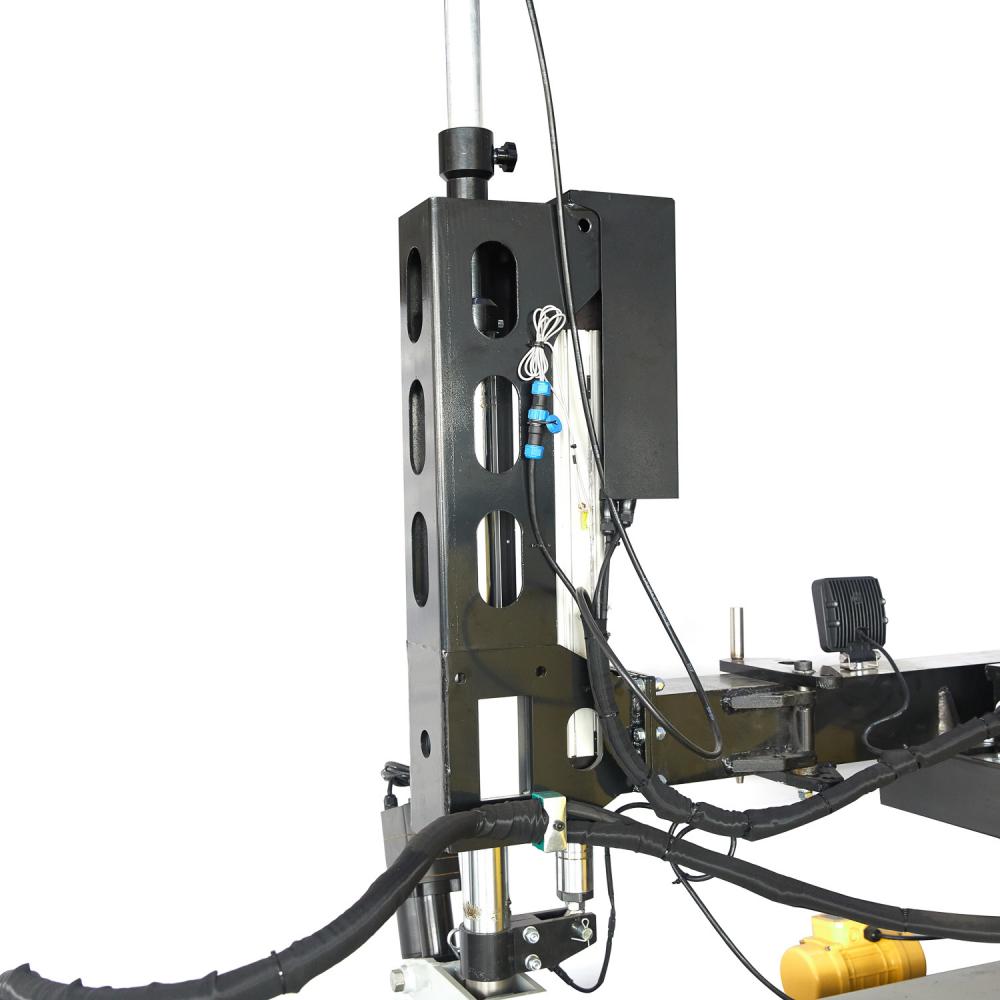

The working principle of the laser screed machine is based on laser positioning and closed-loop automatic control technology, which can be divided into three core links: signal emission, real-time induction and automatic adjustment. First, the independent laser transmitter fixed on the construction site emits a horizontal laser reference plane covering the entire construction area, forming an accurate and unified elevation benchmark that is not affected by terrain and human factors. Then, the high-sensitivity laser receiver installed on the screed machine continuously captures laser signals and transmits the real-time height deviation data to the on-board computer control system. When the machine moves forward on the wet concrete surface and encounters height fluctuations, the control system instantly calculates the deviation value and drives the servo motor to automatically adjust the height and horizontal angle of the leveling head. While completing precise leveling, the high-frequency vibrating device of the machine generates stable vibration force to eliminate internal air bubbles of concrete, compact the concrete layer, and improve the overall density and structural strength of the floor.

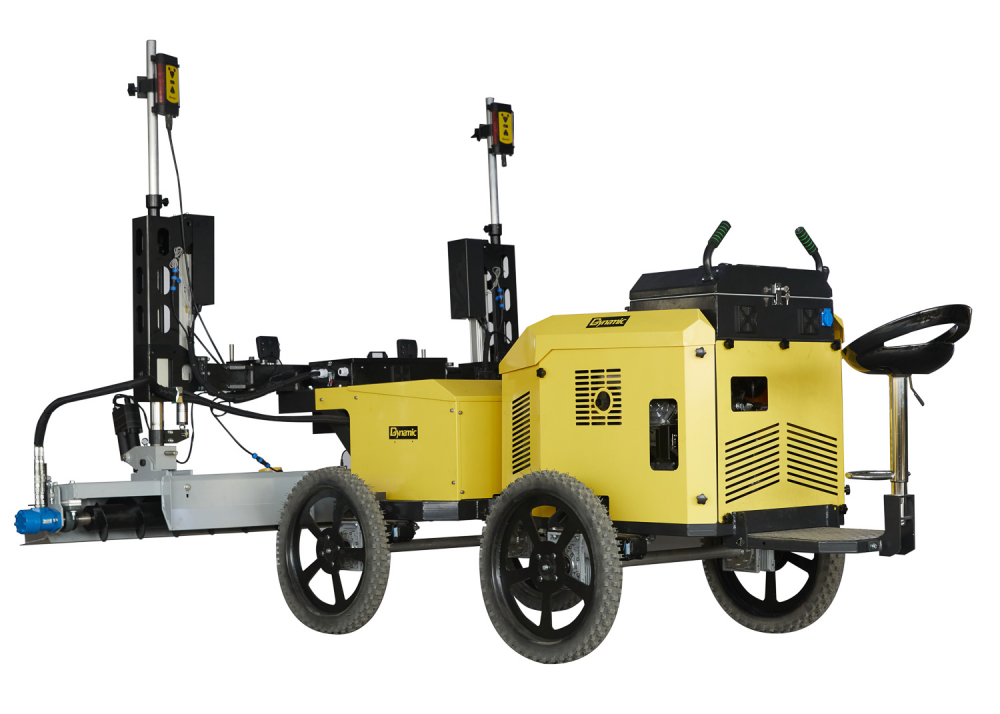

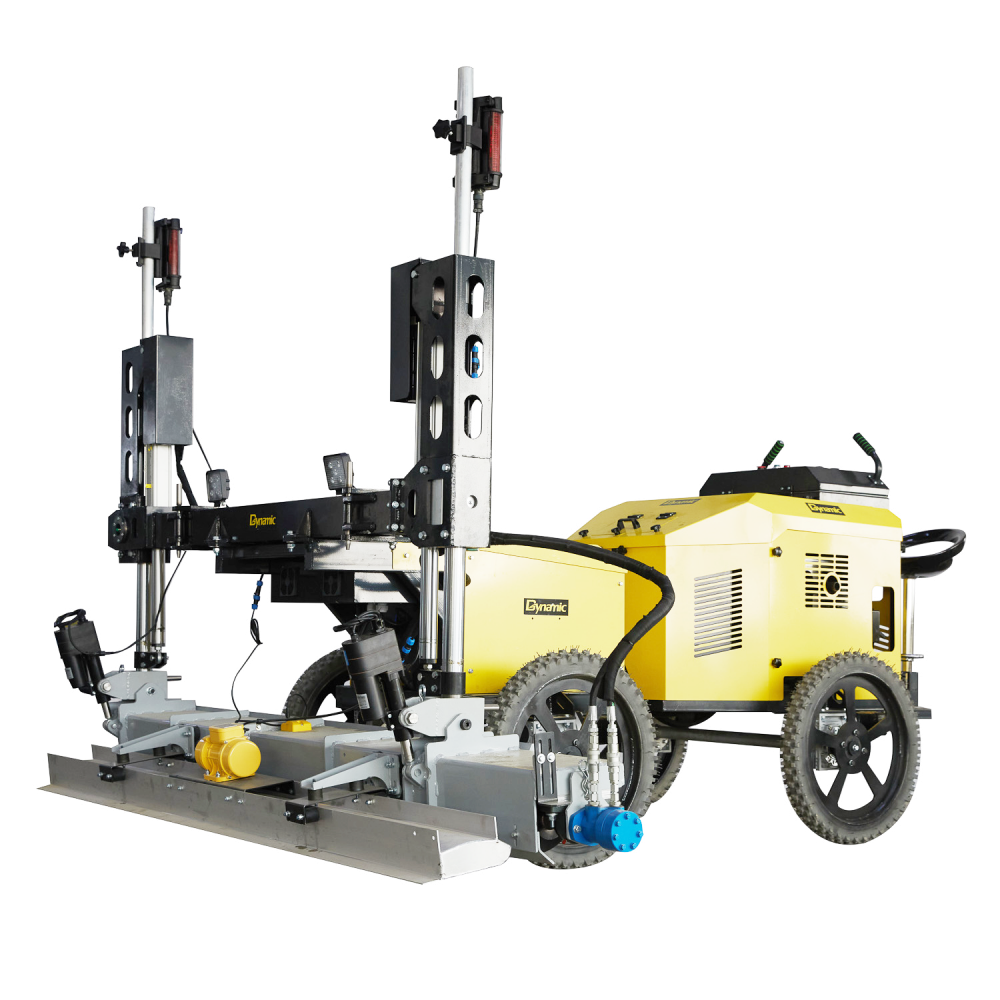

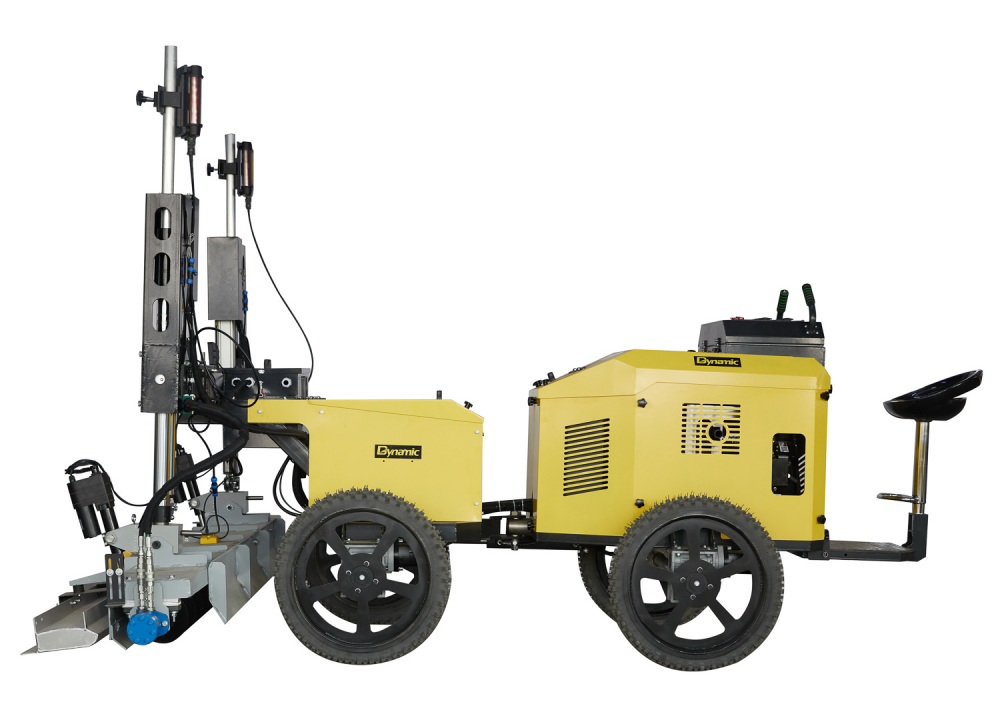

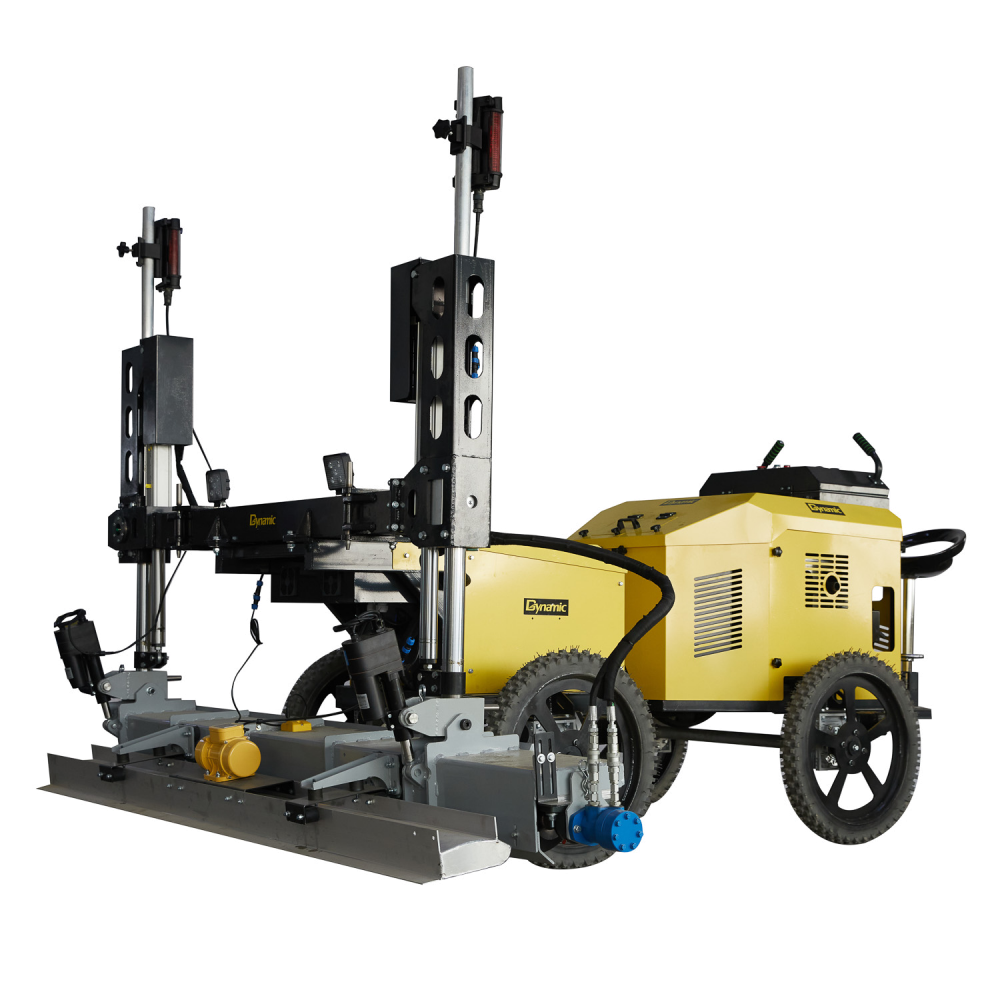

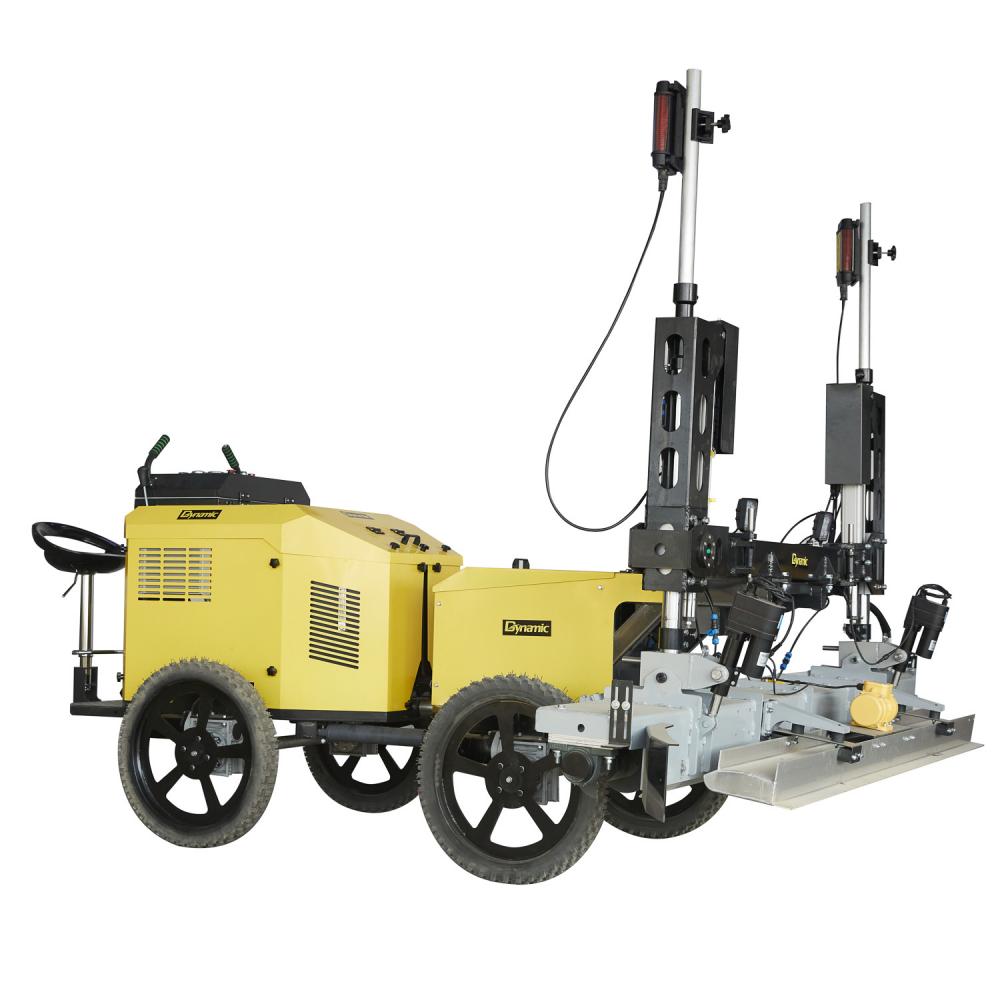

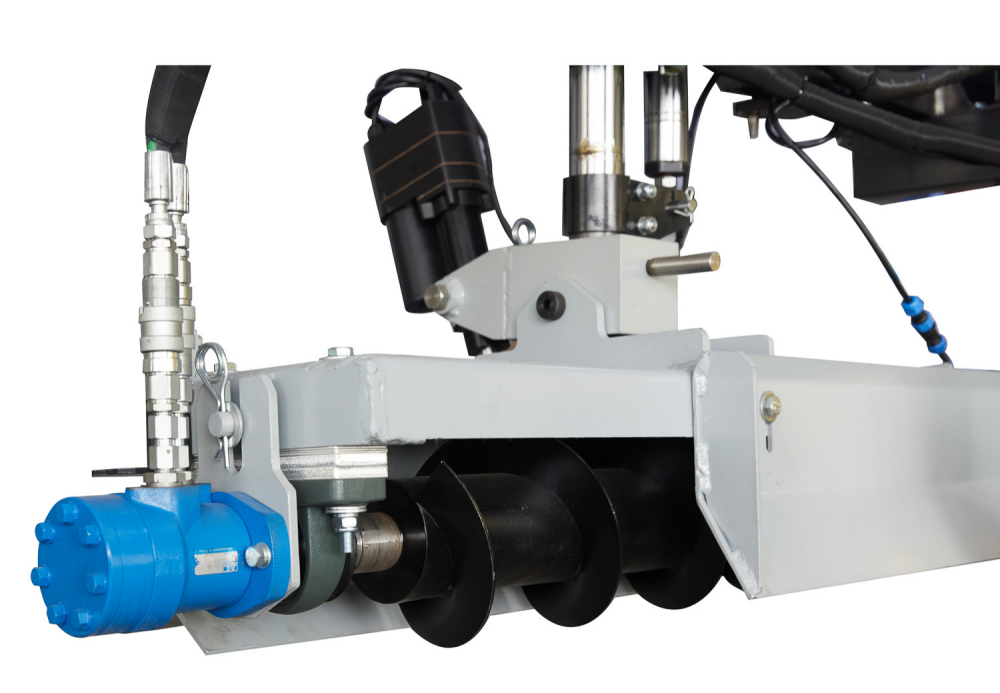

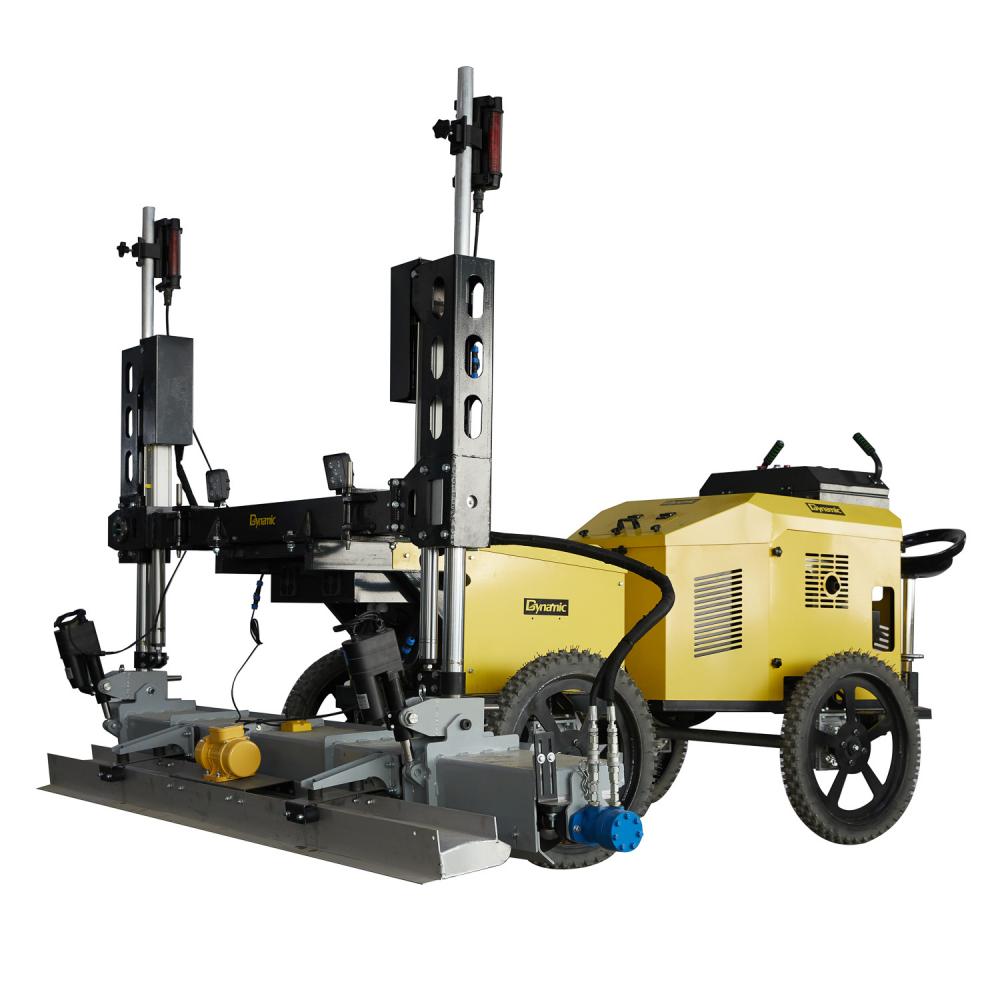

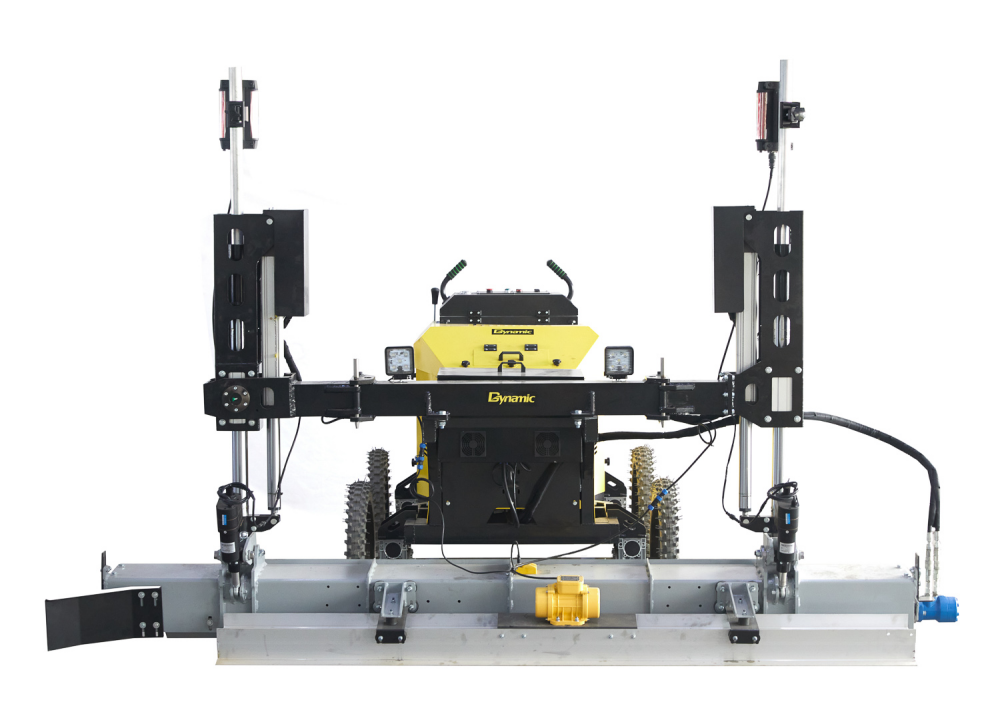

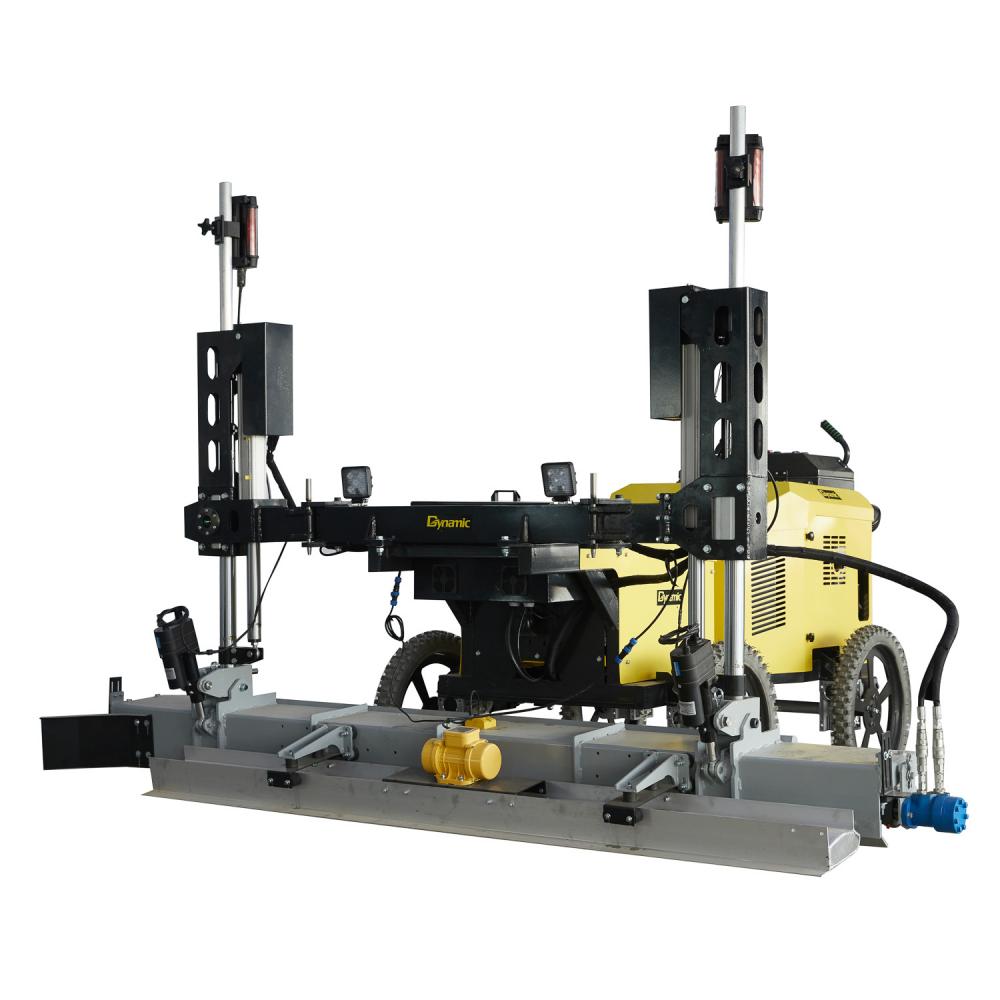

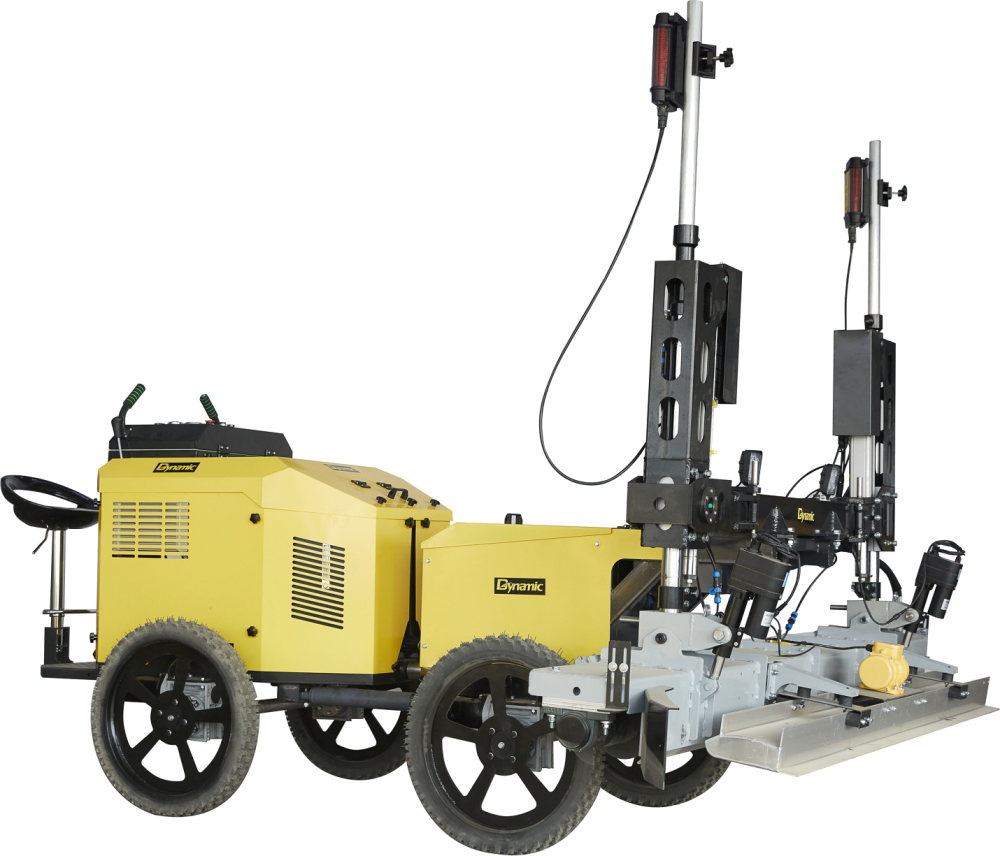

In terms of structural composition, the automatic laser screed machine adopts an integrated modular design, mainly including laser positioning system, intelligent control system, walking power system, leveling and vibrating execution system. The laser positioning system composed of a high-stability transmitter and high-precision receiver ensures millimeter-level elevation control accuracy, effectively avoiding cumulative errors in large-area construction. The intelligent operation panel supports simple and intuitive parameter setting, realizing one-key start and automatic operation, and a single operator can complete the whole construction process, which greatly reduces the demand for skilled workers. The walking system adopts independent servo drive wheels, with flexible steering and stable movement, adapting to various large-area and regular pavement construction scenarios. The integrated leveling head integrates scraping, spreading and vibrating functions, which can evenly pave excess concrete to the side during operation, avoiding material accumulation and missing paving, and improving construction uniformity.
Compared with traditional concrete leveling technology, the automatic laser screed machine has unparalleled comprehensive advantages in construction quality, efficiency and cost control. In terms of construction accuracy, it can control the floor flatness error within ±3/16 inch per 10 feet, far exceeding the construction standard of manual operation, effectively solving common problems such as uneven floor height, local bulge and depression in traditional construction. In terms of construction efficiency, the machine’s single-pass covering width reaches 2.5 to 3 meters, with a working efficiency of up to 500 square meters per hour, which can replace the workload of 8 to 10 manual workers. It increases the overall construction efficiency by more than 50% and shortens the project cycle significantly. In terms of cost saving, the equipment can save about 35% of labor costs, and its precise leveling reduces concrete material waste and later floor repair and rework costs, bringing long-term economic benefits to construction enterprises.

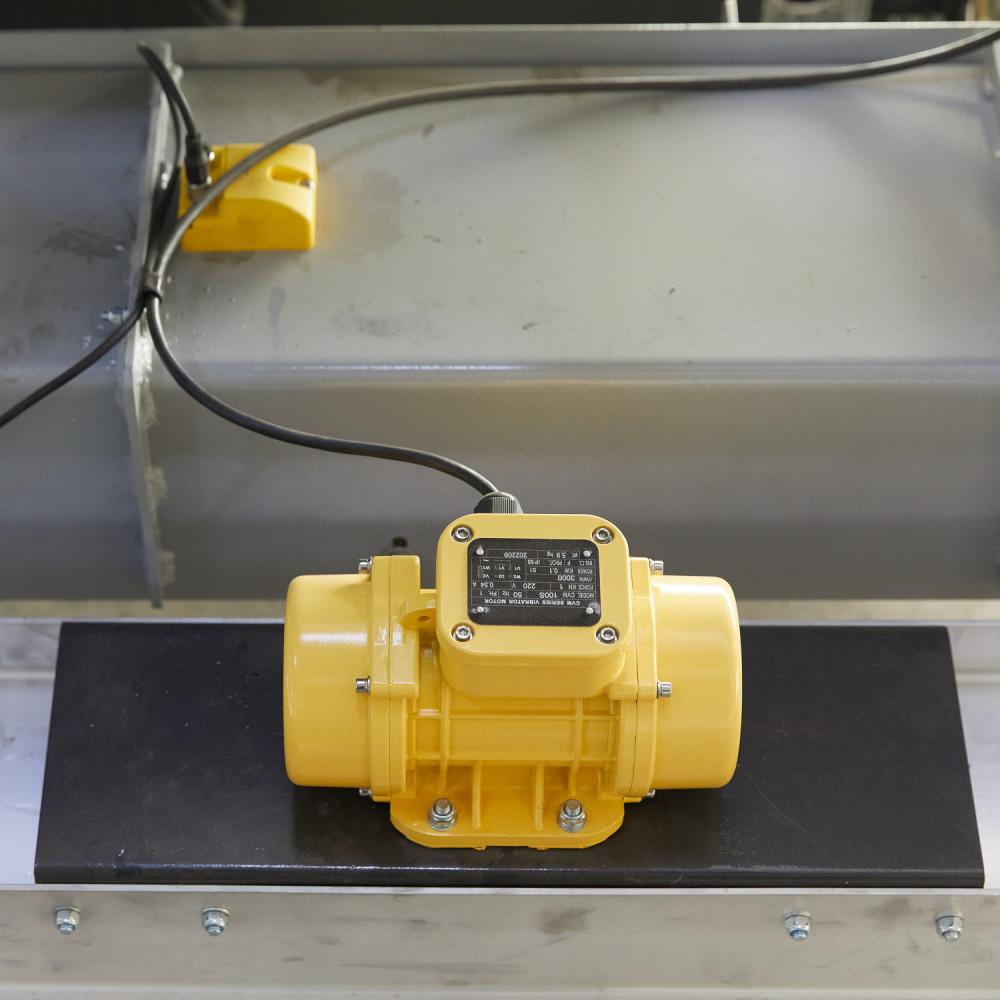

In addition to quality and efficiency advantages, the equipment also shows outstanding performance in construction stability and environmental adaptability. The main structural components adopt imported high-performance materials, with stable mechanical performance, wear resistance and long service life. The adjustable vibration frequency of 50-60Hz and 20kN high vibration force can fully eliminate concrete internal voids, improve floor compactness, and enhance the wear resistance and compression resistance of the concrete floor, extending the service life of the building floor. Moreover, the all-electric drive design reduces equipment maintenance costs, and the optimized body structure ensures flexible operation on flat construction sites, suitable for continuous large-scale paving operations.
At present, automatic laser screed machines are widely applied in various large-area concrete floor engineering scenarios. In industrial factory buildings and logistics warehouses, high-precision and high-flatness floors are required to meet the walking demand of automated handling equipment and forklifts, and laser screed machines can perfectly meet the high-standard flatness and compactness requirements of such projects. In large commercial plazas, exhibition halls and airport terminals, the equipment ensures the overall flatness and beautiful appearance of the ground, reducing the later ground polishing and finishing workload. In municipal road and infrastructure construction, it accelerates the paving speed of concrete roads and improves the overall construction quality of road surfaces.
Despite its numerous advantages, the automatic laser screed machine still has certain limitations in practical application. Firstly, the initial purchase and rental cost of the equipment is higher than that of traditional mechanical tools, requiring certain capital investment from construction enterprises. Secondly, the equipment is more suitable for large-area and regular floor construction, and its flexibility is insufficient for small-area, irregular and complex terrain projects. In addition, the equipment needs professional calibration before operation and regular maintenance, and operators need to receive simple professional training to ensure standardized operation.
With the continuous development of construction intelligence and green building technology, the automatic concrete floor leveling laser screed machine is evolving towards intellectualization, lightweight and multi-scenario adaptation. The new generation of equipment is equipped with intelligent data monitoring and remote debugging functions, which can record construction data in real time, facilitate project quality tracking and management. Meanwhile, the optimized lightweight body design makes the equipment adaptable to more complex construction scenarios, breaking the limitation of single application scenario. In the context of the construction industry’s transformation to high-quality and efficient development, laser screed technology will gradually replace traditional manual leveling methods and become the mainstream standard equipment for concrete floor construction.
In conclusion, the automatic concrete floor leveling laser screed machine is a revolutionary intelligent construction equipment in the field of concrete engineering. It solves the pain points of low precision, low efficiency and high error rate of traditional leveling technology through laser precise positioning and automatic intelligent control. While improving concrete floor construction quality and efficiency, it reduces construction labor costs and material waste, and promotes the standardized and intelligent development of concrete construction technology. With the continuous progress of construction technology and the expansion of application scenarios, this equipment will play a more important role in modern infrastructure construction and become an indispensable core equipment in high-standard building floor engineering.
