VTS-600 Aluminum alloy material 4-18 meters can be customized Truss Screed

Short Description:

Dynamic Truss Screed series could greatly improve the concrete smoothness and compaction, as well as prolong the service life of concrete floor. Widely used in modern industrial workshop, large shopping malls, warehouse and other construction of large area concrete ground preferred.

1. 6m standard configuration, 4-18m customizable

2. It is composed of 3m, 1.5m and 1m, and can realize various lengths

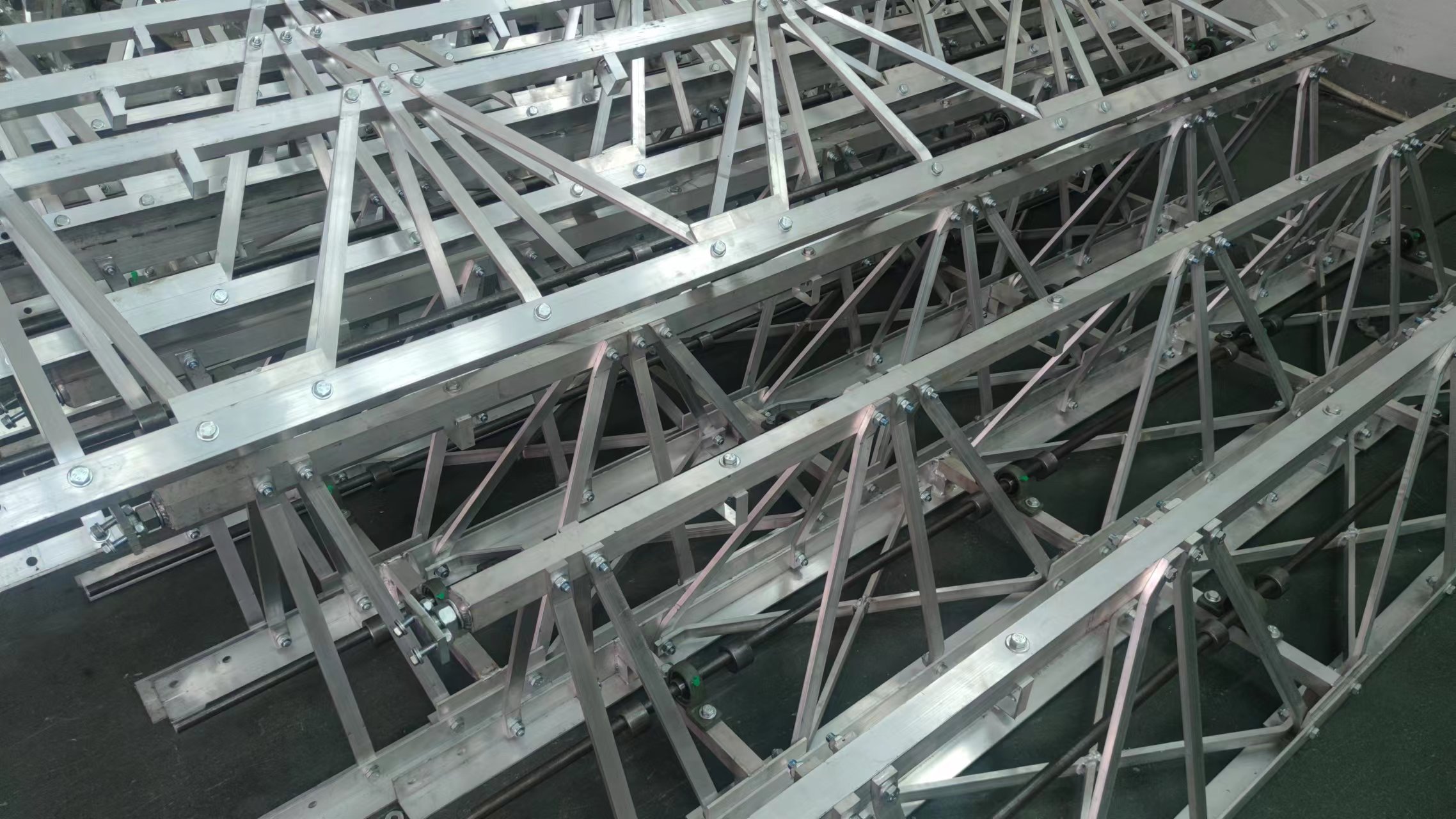

3. It is made of aluminum alloy with light weight, deformation resistance and no rust

4. The joystick is integrated at one side of the engine, and one person can operate the machineVTS-600 youshi

Product Detail

Product Tags

Product Video


Product Name  Truss Screed
Model  VTS-600
Weight   148 (kg)
Dimension   L6200*W720xH890 (mm)
Exciting force   2600 (N)
Power    Four-stroke air-cooled gasoline engine
Type   Honda GX270
Maximum output Power   7.0/9.0 (kw/hp)
              Gasoline capacity             6.0 (L)
Head section   HP 30
Dimension   3050x355x475 (mm)
Weight   92 (kg)
Middle section   HC 15
Dimension    1500x355x475 (mm)
Weight   26 (kg)
Tail section   HE 15
Dimension   1500x355x475 (mm)
Weight   30 (kg)


1. Hight strength and light weight aluminum truss, reducing intensity of labor.

2. Fast connect system for assembly without special tools by one person. Available length: 4-18 meters.

3. One side winches for one person operation.

4.honda engine powerful

Packaging & Shipping

VTS-600 (1)
VTS-600 (6)
VTS-600 (7)
VTS-600 (5)
VTS-600 (4)
VTS-600 (3)

After Sales Service

* 3 days delivery match your requirement.

* 2 years warranty for trouble free.

* 7-24 hours service team standby.

VTS-600 (14)
VTS-600 (8)

Packaging & Shipping


1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces) 1 - 1 2 - 3 >3
Est.time (days) 7 13 To be negotiated
新网站 运输和公司

Company Information

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
