DUR-600 Two eccentric blocks 60kN pressure strength Large tonnage vibrating plate compactor

Short Description:

Newly designed DUR-600 plate compactor has a tamping capacity of 60kN. It has the advantages of small size and large tamping strength. The size of the fuselage is only equivalent to that of the HUR-300, and the tamping strength is twice that of the HUR-300 (30 kN for the HUR-300).

The top cylindrical roller bearing is adopted, with high speed and reliability. The key ramming plate material is made of high-strength and wear-resistant ductile iron to ensure the quality.

It is mainly used for subgrade compaction, slope surface (embankment), bench compaction, groove pit compaction and other complex foundation compaction.

企业微信截图_16703979188146


Product Detail

Product Tags

Product Video

Product Paramenters

Model  DUR-600
Weight  450 (kg)
Dimension   L965 x W600 x H1370 (mm)

Ram plate size

 L890xW600 (mm)

Pressing force

 60 (kn)

Forward speed

22 (m/min)
Vibration frequency  4100/69 (rpm/hz)
Power type Four-stroke air-cooled gasoline /diesel engine
                  Power                       13.9 /19 (kW/hp)
Fuel tank capacity  5.5 (L)

Features

1hydraulic operating handle, flexible forward and backward operation

2.central lifting device for easy loading unloading and transportation

3.integrated protective cover better engine protection

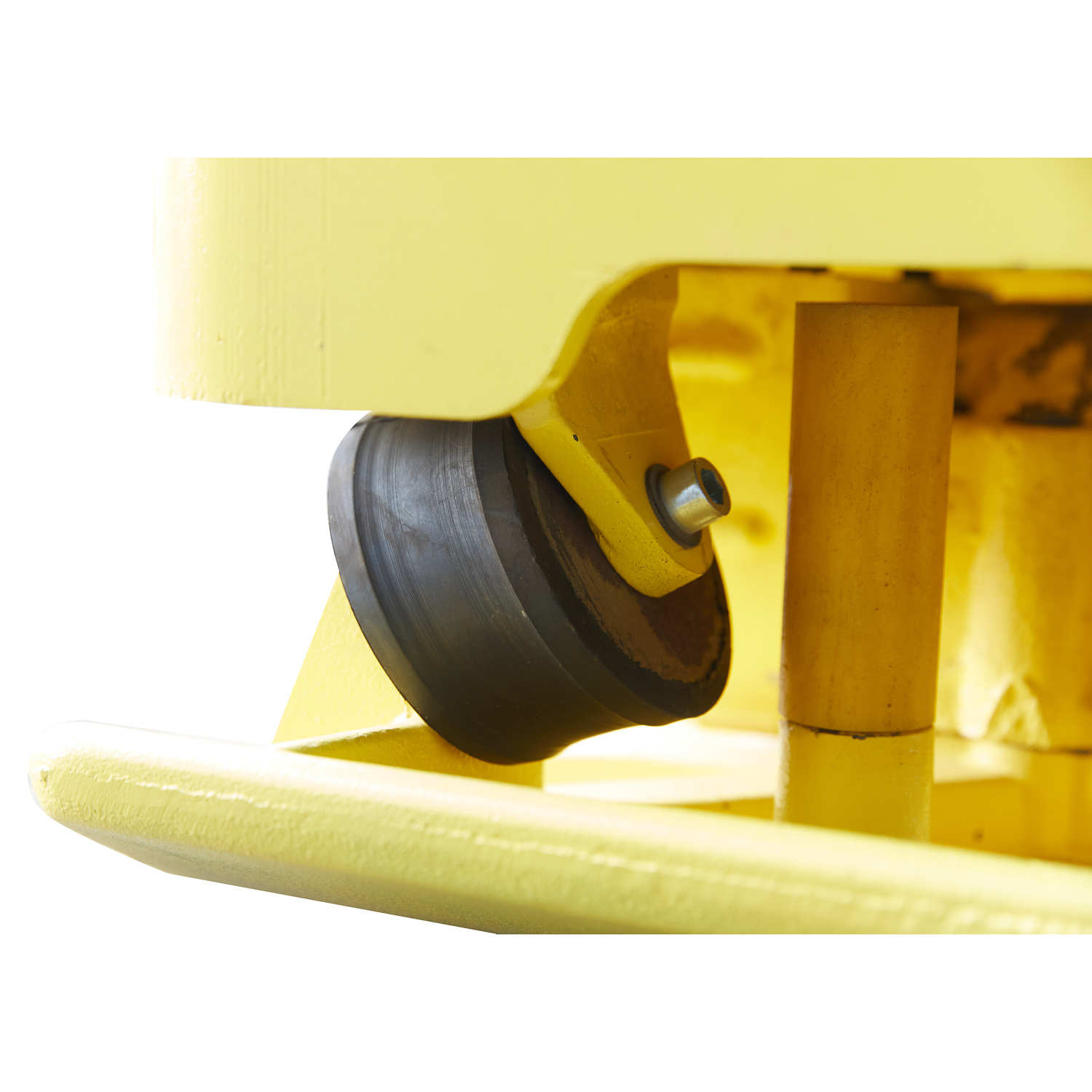

Details image

01
IMG_20220110_134830(1)
IMG_20220110_134844(1)

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Packaging
Size
1100*500*950
Weight
99kg
Packaging Details
The normal package is wooden box  If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
新网站 运输和公司

After Sales Service

VTS-600 (14)
VTS-600 (8)

Company Profile

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
