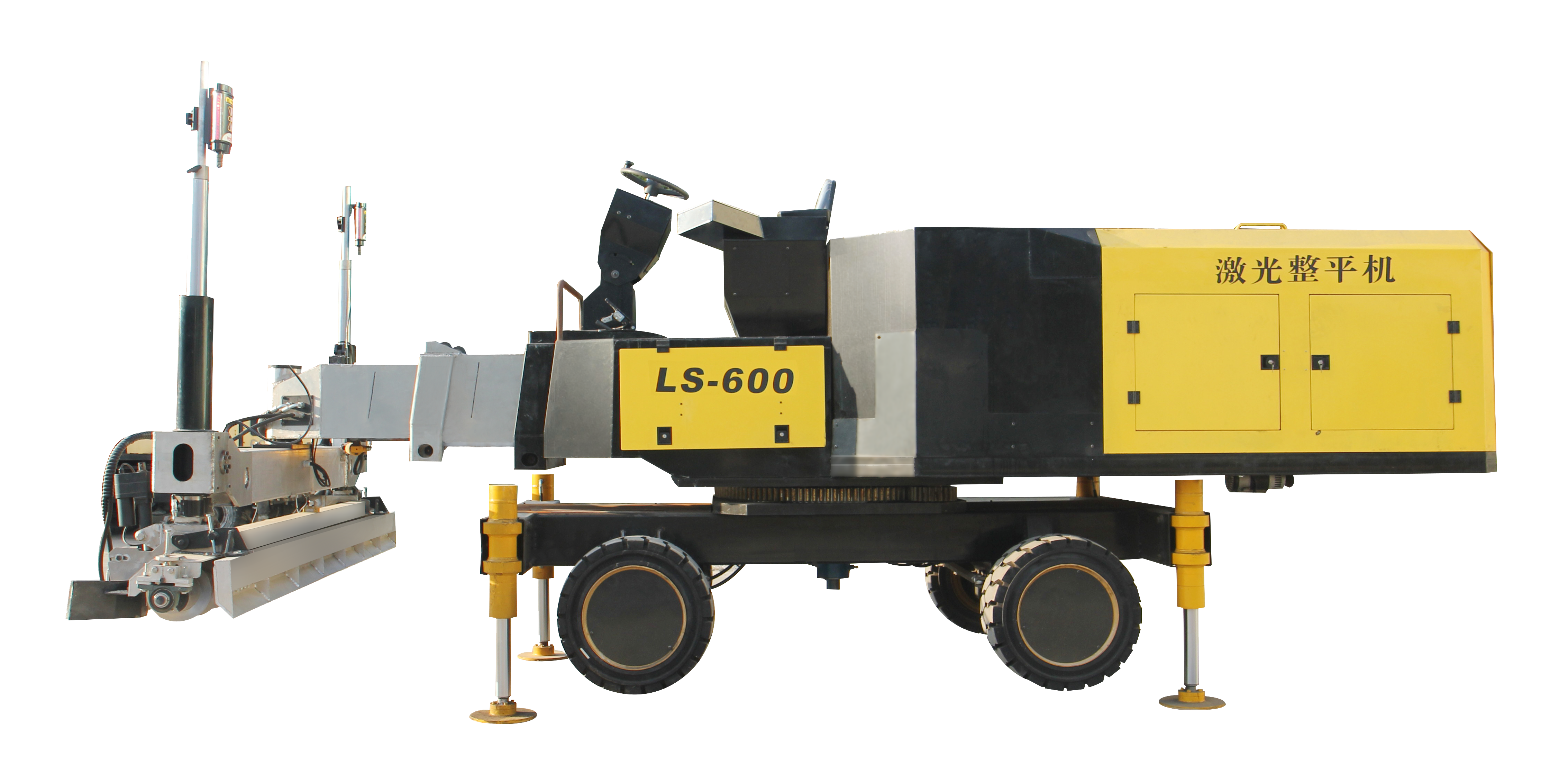

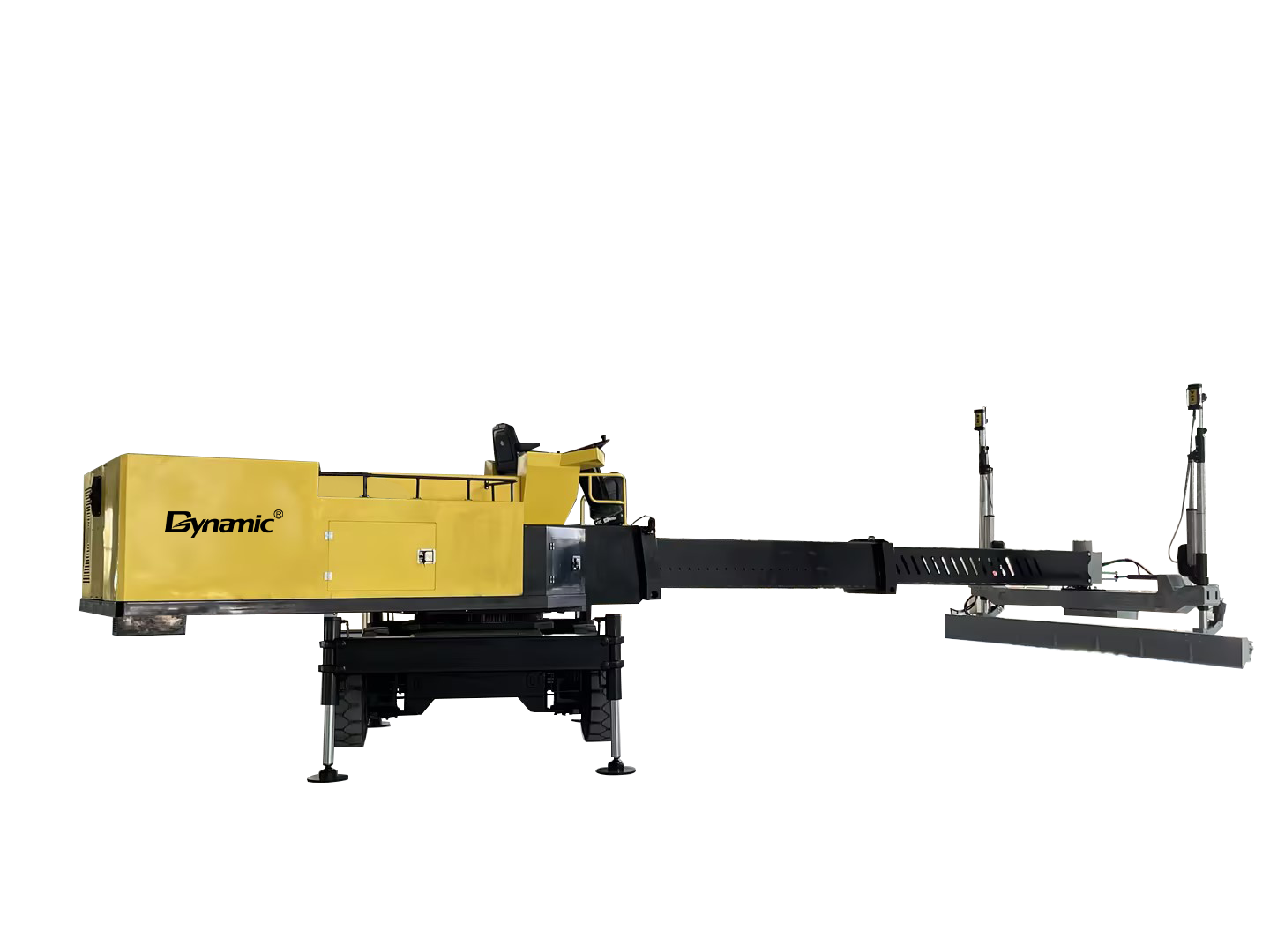

LS-600 Boom Laser Screed Machine with Engine Core Concrete Floor Screed for Sale
Short Description:
1. High construction quality: The ground constructed by the Laser Screed machine average flatness can reach 2mm. 2. Fast construction speed: On average, 3000 square meters of ground pouring can be completed every day. 3. Reduce the amount of formwork support:
the formwork consumption is only 38% of the traditional operation method. 4. High degree of automation and low labor intensity: reduce operators by 30% and reduce labor intensity at the same time. 5. High economic benefit: 30% lower cost per square meter than traditional process.
|
Model
|
LS-600 |
|
Weight
|
8000(kg)
|
|
Dimension
|
L5500xVV4000xH2350
|
|
One-time leveling area
|
0-18 (km/h)
|
|
Walking drive
|
High torgue hydraulic motor four-wheel drive
|
|
Flattening head width
|
4000 (mm) |
|
Paving thickness
|
30-400 (mm) |
|
Exciting force
|
3000 (N)
|
Features
2. Dynamic brand/Topcon laser system, with high working precision and reliability.
3. Hybrid drive, more selection with more economical cost.
4. Use precision laser technology, closed loop control technology and highly sophisticated integrated hydraulic system, and the microcomputer automatic control.
5.High-precision automatic control system independently developed by Dynamic with good effect
6.operation panel Convenient and simple
7.Aluminum-magnesium alloy leveling head Durable standard 2.5 meters optional 3 meters
8.High frequency vibration motor Good pulping effect
1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.
| Lead Time | |||
| Quantity(pieces) | 1 - 1 | 2 - 3 | >3 |
| Est.time (days) | 7 | 13 | To be negotiated |
| Engine | Yanmar 4TVN98 |
| Power |
44.1/60kW/hp) |
| Laser system | Dynamic digital dual slope rmote control transmitter |
| Laser system control mode | Laser scanning + high precision servo push rod |
| Port | shanghai |
Shanghai Jiezhou Engineering & Mechanism Co., Ltd.(hereinafter referred to as “DYNAMIC”) is a professional manufacturer producing world-class concrete products for Road Industry. Located in Shanghai city of China, Dynamic established since 1983 and has been involved in a wide variety of road construction projects all around the domestic and overseas. DYNAMIC are based on humanism design, our product feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.
Q1: Are you manufacture or trade company?
A: Of course, we are manufacturer and we have our own factory. We can offer you best products and best services.
Q2: How about your delivery time?
A: Generally, it will take 3 days after payment arrived.
Q3: What is your terms of payment?
A: T/T, L/C, MasterCard, Western Union.
Q4: What is your packaging?
A: We package in Plywood case.
Q5: Do you machine can be custom-made?
A: Yes, we can design and produce according to client's requirements.
